Split pressurized solar water heater with copper coils

FOB Reference Price:Get Latest Price
$500.00 - $2,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Split
Installation:
Wall Mounted
Housing Material:
Painted color steel
Certification:
CE
Capacity:
300
Place of Origin:
Zhejiang, China
Brand Name:
OUSIKAI
Model Number:
OS-SP2-300
Product name:
Split pressurized solar water heater
Inner tank:
SUS304-2B Stainless Steel
Outer tank:
Painted Color Steel
Frame:
Alumimum Alloy
Vacuum tube:
High Borocilicate 3.3 Glass
Work station:
SP106
Warranty:
10 Years
Use:
Home Applications
Item:
OS-SP2-300
Heating System:
Thermosyphon (Passive)
Supply Ability
Supply Ability:
6000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
Shanghai & Ningbo
Lead Time :
15
Product Description

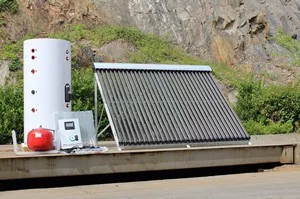

Split pressurized solar water heater with copper coils.

Characteristics of Coil Runner Heater
Material of Manifold: Aluminum
Material of Frame : Aluminum
Material of header pipe; Copper
Insulation Material : Rock Wool
Best Working angle : 20 degree to 70 degree
Max. Operating Pressure : 8 bar
Best Flux: 0.15liter/min/tube
Performance : Transferring : ho=0.715
Max. Stagnation Temp: 245 C/ 477 F
Absorber type: ALN/ALN-SS/SU on glass


Water heater pump station component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector
9. Return circuit connector
10. Wall mounting
11. Expansion vessel: 8L
12. Pressure resistance: 10 bar pressure for expansion vessel


Pressurized water tank:
Material of Inner Tank
SUS304 - 2B food grade stainless steel
Thickness:1.5mm /2.0mm/2.5mm

Material of outer tank
Color chrome steel or stainless steel or galvanized steel
Thickness: 0.5mm

Water tank capacity
100L to 1000L with no single or double coil or three coil

Insulation layer
High density polyurethane foam, thickness: 50-60mm

Back-up heater
1.5kw to 2.5kw available

Detailed Images
Packing & Delivery

Trading term.


MOQ: 20'GP container (Sample is available)
Warranty: 10 years guarantee for whole set solar water heater
Payment term: 30% deposit by TT, Balance for BL by TT or LC
Delivery time: 7-15 days after confirmed
Port of departure: Shanghai or Ningbo
Supply ability: 5000 sets per month
Package: Standard export cartons
